Fixed-Wing VTOL UAV
Long-endurance fixed-wing VTOL UAV platforms for surveillance, mapping, inspection, emergency response, and communication missions, combining runway-free takeoff with efficient long-range cruise performance.
Applications
-
Support persistent observation and wide-area monitoring in complex field environments.
-
Cover large areas efficiently for mapping, route planning, and terrain data collection.
-
Carry EO, communication, or specialized mission payloads for infrastructure and industrial inspection.
-
Deploy quickly for search, rescue, and temporary communication relay tasks.
The fixed-wing VTOL UAV platform is designed for missions that require long endurance, flexible deployment, and efficient coverage of large operating areas. It is suitable for aerial surveillance, mapping, infrastructure inspection, emergency response, communication relay, and other multi-mission operations where conventional runway-based aircraft are less practical.
Why Choose This Fixed-Wing VTOL UAV Platform
Runway-Free Deployment
Vertical takeoff and landing capability allows operation in areas where conventional fixed-wing aircraft are difficult to deploy.Efficient Long-Range Flight
Fixed-wing cruise design helps improve range and endurance for large-area missions.Multiple Power Options
Available in electric and fuel-powered configurations to match different endurance and payload requirements.
Flexible Payload Integration
Supports surveillance, communication, navigation, mapping, and other mission-specific payloads.Scalable Platform Range
Covers lightweight, medium-duty, and heavy-duty mission needs across multiple aircraft sizes.Built for Multi-Mission Operations
Suitable for inspection, mapping, emergency response, patrol, and communication support tasks.
Model Selection Guide
The fixed-wing VTOL UAV range includes compact, mid-range, and heavy-duty platforms for different mission profiles. Smaller models are suitable for lightweight surveillance and mapping tasks. Mid-range models balance endurance, payload integration, and deployment flexibility. Large platforms are designed for long-endurance, communication, patrol, and heavy-payload operations.
Light Mission Models: Q13, Q20
Mid-Range Multi-Mission Models: Q32, Q40, Q50
Long-Endurance / Heavy-Duty Models: Q80, Q150, XF-200, HQ-600
| Parameter |

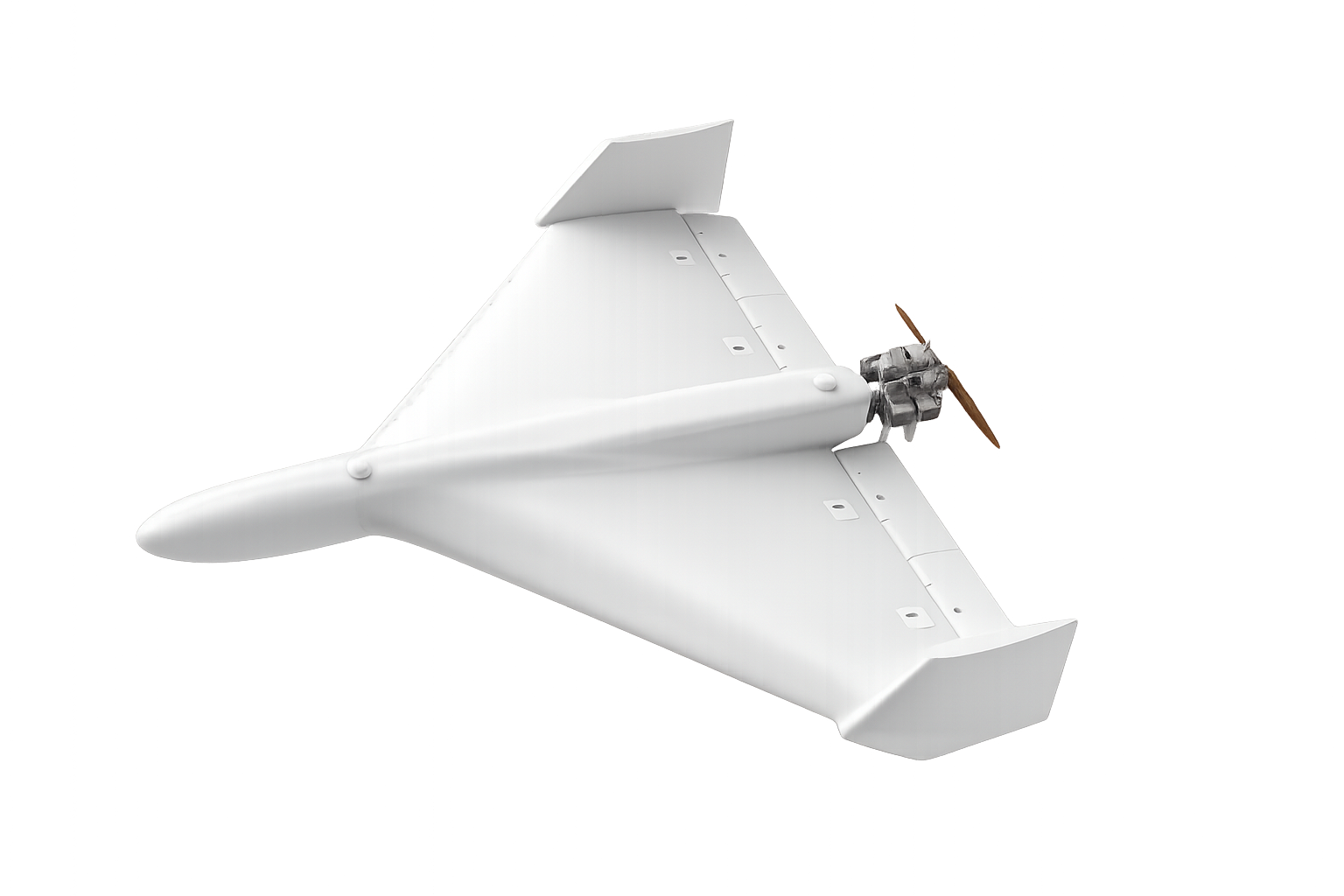

XF-200
|
HQ-600
|
Q13
|
Q20
|
Q32
|
Q40
|
Q50
|
Q80
|
Q150
|
|---|---|---|---|---|---|---|---|---|---|
| Type | Patrol UAV | VTOL Fixed-Wing UAV | VTOL Fixed-Wing UAV | VTOL Fixed-Wing UAV | VTOL Fixed-Wing UAV | VTOL Fixed-Wing UAV | VTOL Fixed-Wing UAV | VTOL Fixed-Wing UAV | Fixed-Wing UAV |
| Wingspan | 2.95 m | 6.235 m | 2.25 m | 3.35 m | 4.0 m | 4.8 m | 4.8 m | 7.0 m | 8.5 m |
| Length | 3.2 m | 4.08 m | 1.4 m | 1.85 m | 2.1 m | 2.6 m | 2.6 m | 3.8 m | 5.3 m |
| Maximum Takeoff Weight | 200 kg | 155 kg | 13 kg | 18 kg | 30 kg | 60 kg | 55 kg | 180 kg | 280 kg |
| Standard Payload | 50 kg | 45 kg | 1.5 kg | 3 kg | 5 kg | 15 kg | 15 kg | 40 kg | 80 kg |
| Endurance | >6 h (with 50 kg payload) | 12 h | 3 h (no payload) | 3 h (with 1 kg payload) | 3 h (no payload) | 3 h (no payload) | 8 h | 8 h | 12 h |
| Cruise Speed | 180–200 km/h | 110–150 km/h | 18–30 m/s | 18–30 m/s | 22–36 m/s | 25–36 m/s | 25–36 m/s | 120–150 km/h | 140–160 km/h |
| Maximum Flight Speed | 250 km/h | 190 km/h | 35 m/s | 40 m/s | 40 m/s | 40 m/s | 40 m/s | 160 km/h | 200 km/h |
| Maximum Flight Altitude | 3000 m | 5000 m | <5000 m | — | <5000 m | <5000 m | <5000 m | ≤4000 m | ≤6000 m |
| Communication / Control Range | Standard 50 km integrated data link (optional 100 km) | Maximum control range 50 km | Standard 30 km | Control radius 30 km | Standard 30 km integrated data link (optional 50 km) | Standard 50 km integrated data link (optional 100 km) | Standard 50 km integrated data link (optional 100 km) | Standard 150 km integrated data link | Standard 150 km integrated data link |
| Communication Frequency | 1.4 GHz | — | 1.4 GHz | — | 1.4 GHz | 1.4 GHz | 1.4 GHz | 1.4 GHz | 1.4 GHz |
| Environment / Wind Resistance | — | Max wind resistance: Level 6 | Operating temperature: -20°C to 45°C; Max wind resistance: Level 6 | Max wind resistance: Level 6 | Operating temperature: -20°C to 45°C; Max wind resistance: Level 6 | Operating temperature: -20°C to 45°C; Max wind resistance: Level 6 | — | Operating temperature: -20°C to 45°C; Max wind resistance: Level 6 | Operating temperature: -20°C to 45°C; Max wind resistance: Level 6 |
| Power System | 95# gasoline (mixed oil); 550–600CC two-stroke engine | — | — | — | — | — | 95# gasoline (mixed oil); 10.0 hp; optional 400/800W generator; 120cc two-stroke EFI integrated-start engine | — | — |
| Additional Notes | Suitable for heavy-payload patrol missions, with strong payload capacity, fuel power, and long endurance. | The image also indicates a maximum fuel capacity of 50 L, expandable to 70 L. | Designed for long endurance, modular deployment, high reliability, and fast mission readiness, with support for various payload configurations. | Features a twin-boom inverted V-tail layout and rear pusher propulsion design, with a maximum payload of 3 kg. | A multi-purpose electric UAV with a twin-boom inverted V-tail layout and rear pusher propulsion design. | Offers VTOL capability and heavy-payload performance, with flexible payload integration for different mission needs. | A heavy-payload, long-endurance multi-purpose UAV with a twin-boom inverted V-tail layout. | Mainly designed for emergency communications, inspection, and search-and-rescue missions, and can carry satellite communication antennas and 4G/5G base stations. | Features a high-performance aerodynamic design and composite airframe, and supports payloads such as EO gimbals, communication devices, navigation equipment, small SAR systems, oblique cameras, and laser payloads. |
Payload and Mission Flexibility
Depending on the selected model, the fixed-wing VTOL UAV platform can support a wide range of mission payloads, including EO gimbals, communication devices, navigation equipment, small SAR systems, oblique cameras, laser payloads, and other customized configurations. This gives the platform strong flexibility for patrol, inspection, search and rescue, communication support, and mapping missions.
FAQ
-
A fixed-wing VTOL UAV is an unmanned aircraft that combines vertical takeoff and landing capability with efficient fixed-wing cruise flight. It can take off and land without a runway, then switch to fixed-wing flight for longer endurance, wider coverage, and more efficient long-range operation.
This type of UAV is suitable for missions such as aerial surveillance, mapping, infrastructure inspection, emergency response, communication relay, patrol, and other multi-mission operations where flexible deployment and large-area coverage are required. Huanxin fixed-wing VTOL UAV platforms are available in compact, mid-range, and heavy-duty configurations to match different payload, endurance, and mission requirements.
-
A normal fixed-wing drone usually needs a runway, catapult, or recovery area for takeoff and landing. A fixed-wing VTOL UAV can take off and land vertically, making it easier to deploy in mountains, forests, industrial sites, emergency areas, and other field environments where runway conditions are limited.
Compared with a normal fixed-wing drone, a VTOL UAV provides better deployment flexibility while still keeping the long-range and long-endurance advantages of fixed-wing cruise flight. This makes it suitable for mapping, inspection, surveillance, emergency response, communication relay, and patrol missions that require both runway-free operation and efficient area coverage.
-
Yes. A fixed-wing VTOL UAV is often better for long-distance inspection when the mission requires wide-area coverage, long endurance, and flexible takeoff and landing. The fixed-wing cruise design helps improve flight range and endurance, while VTOL capability allows the aircraft to operate without a runway.
For infrastructure inspection, pipeline patrol, power line inspection, road and route monitoring, emergency assessment, and large industrial field operations, a fixed-wing VTOL UAV can cover more distance than many multirotor drones and deploy more flexibly than a normal runway-based fixed-wing aircraft. Depending on the selected model, Huanxin fixed-wing VTOL UAVs support different endurance, payload, and control range options, including long-endurance and heavy-duty platforms for larger inspection missions.
