Industrial UAV

Heavy-lift industrial UAV platforms built for demanding aerial missions, with flexible payload integration, stable flight performance, and scalable configurations for transport, inspection, emergency response, and specialized operations.

Talk to Our Team

Applications

This industrial UAV platform is designed for missions that require stable lifting capacity, flexible payload integration, and dependable field performance. It can be configured for material transport, emergency supply delivery, aerial inspection, mapping support, firefighting support, public safety operations, and other specialized industrial tasks.

  • Move tools, components, and mission-critical supplies in complex field environments.

  • Support fast deployment for rescue, supply drop, and urgent operational needs.

  • Carry cameras, sensors, and monitoring systems for infrastructure and industrial inspection.

  • Adapt to spraying, release, lighting, communication, or other task-specific payloads.

Why Choose This Industrial UAV Platform

  • Heavy-Lift Capability
    Supports standard payloads from light-duty tasks to ultra-heavy industrial missions.

  • Modular Payload Integration
    Plug-and-play structure makes it easier to adapt the aircraft to different operational needs.

  • Precision Positioning
    RTK differential positioning improves navigation accuracy for demanding field deployment.

  • Enhanced Flight Safety
    Millimeter-wave radar obstacle avoidance helps improve mission safety in complex environments.

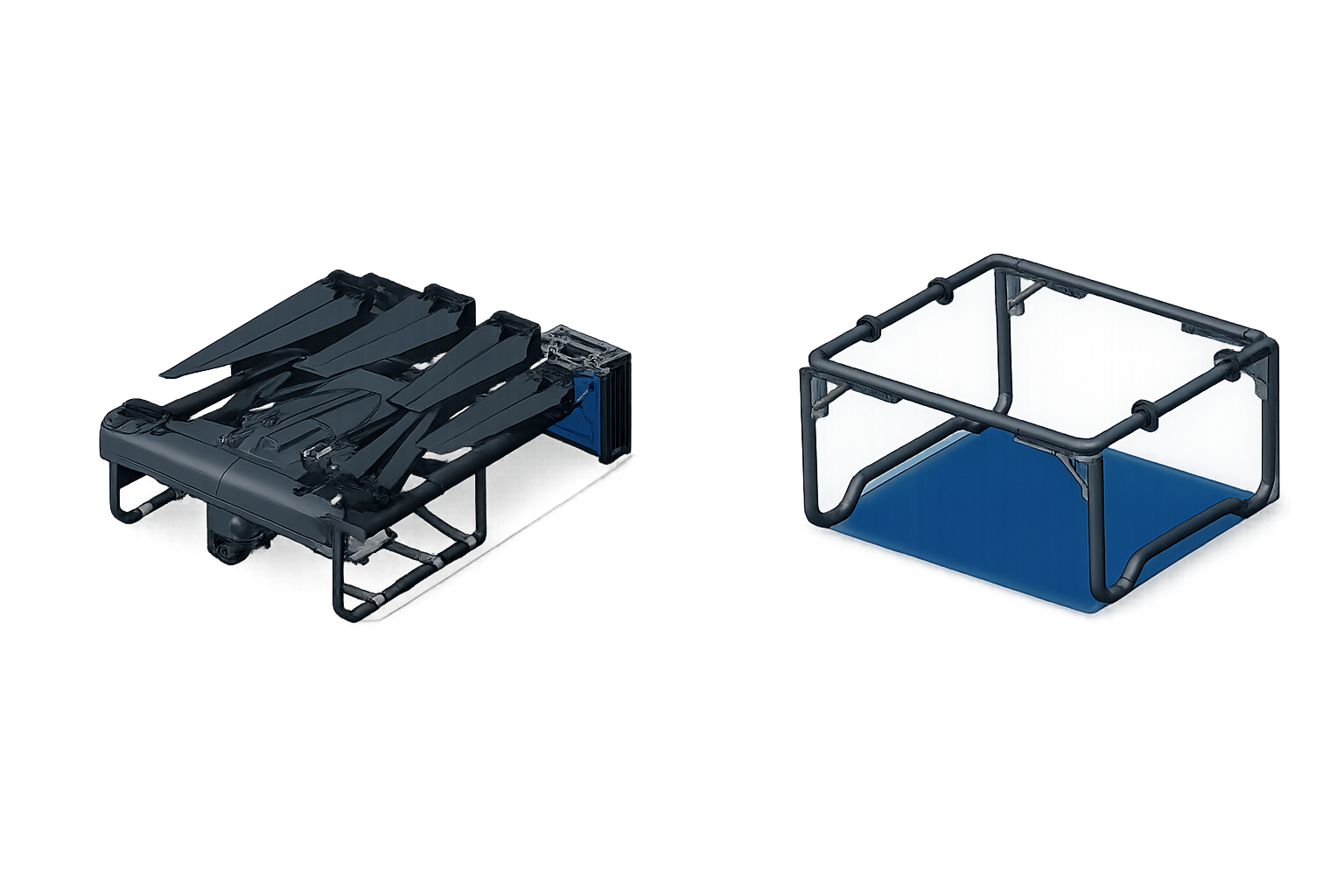

  • Foldable for Transport
    Foldable airframe and landing gear reduce storage space and improve transport efficiency.

  • Wide Payload Compatibility
    Universal mounting interfaces support a broad range of mainstream payload modules.

Model Selection Guide

The platform range covers light-duty, medium-duty, heavy-lift, and ultra-heavy-lift UAV configurations. Smaller models are suitable for inspection, mapping, and compact payload integration. Mid-range models balance endurance and lifting capacity for routine industrial work. Heavy-lift and ultra-heavy-lift models are designed for transport, emergency operations, and specialized high-payload missions.

  • X4-10

    X6-10

  • RT100

    TF100

    F60

    F100

  • H120

    F140

    H200

  • H300

    H400

UAV Specification Table
Product Material Empty Weight Rotor Configuration Propeller Wheelbase Expanded Size Folded Size Standard Payload Max Payload No-Load Endurance Loaded Endurance Max Speed Max Flight Altitude Operating Temperature
RT 100
RT 100
 High-strength carbon fiber + aviation aluminum 32 kg 4-axis 8-prop 43-inch folding propeller 2000 mm 1540 × 1540 × 760 mm 870 × 830 × 760 mm 30 kg — 40 min — 20 m/s — —
TF 100
TF 100
 High-strength carbon fiber + aviation aluminum 25 kg 6-axis 6-prop 43-inch folding propeller 2200 mm 2430 × 2140 × 350 mm 860 × 1170 × 350 mm 50 kg — 60 min 22 min with 50 kg payload 20 m/s — —
X4-10
X4-10
 Toray 3K carbon fiber — 4-axis 4-prop 24-inch folding propeller 950 mm 1100 × 800 × 470 mm 480 × 390 × 470 mm 5 kg — 70 min 40 min with 5 kg payload 15 m/s 5000 m -20°C to 60°C
X6-10
X6-10
 High-strength carbon fiber + aviation aluminum 16 kg 6-axis 6-prop 34-inch folding propeller 1900 mm 1800 × 2000 × 750 mm 1070 × 1150 × 750 mm 10 kg — 75 min 55 min with 5 kg payload 18 m/s 4000 m -20°C to 50°C

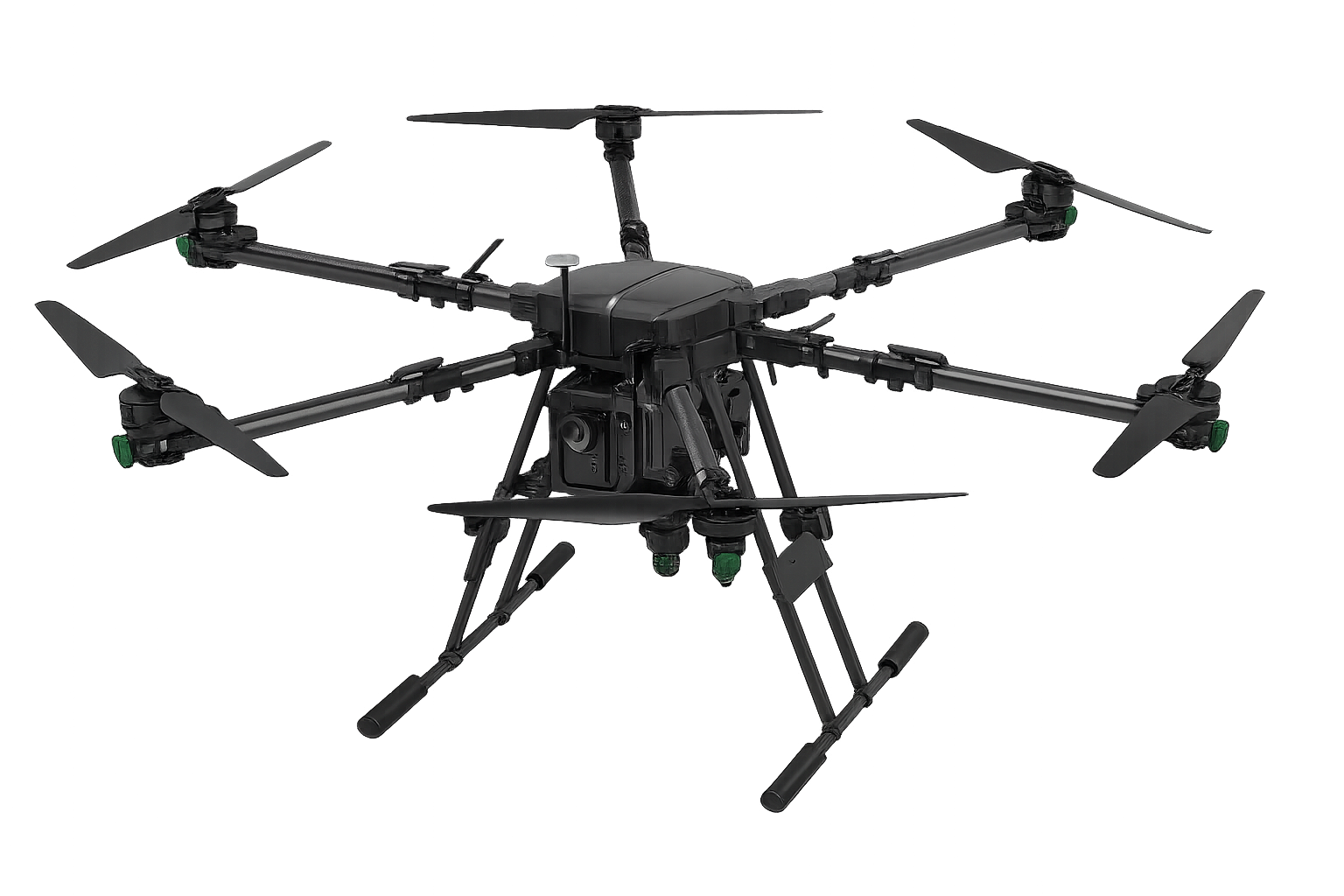

F60
F60
 19 kg 6-axis 6-prop 34-inch folding propeller 1840 mm 2115 × 1840 × 1100 mm 1300 × 1120 × 1100 mm 30 kg — 50 min 20 min with 30 kg payload 20 m/s 5000 m -20°C to 60°C

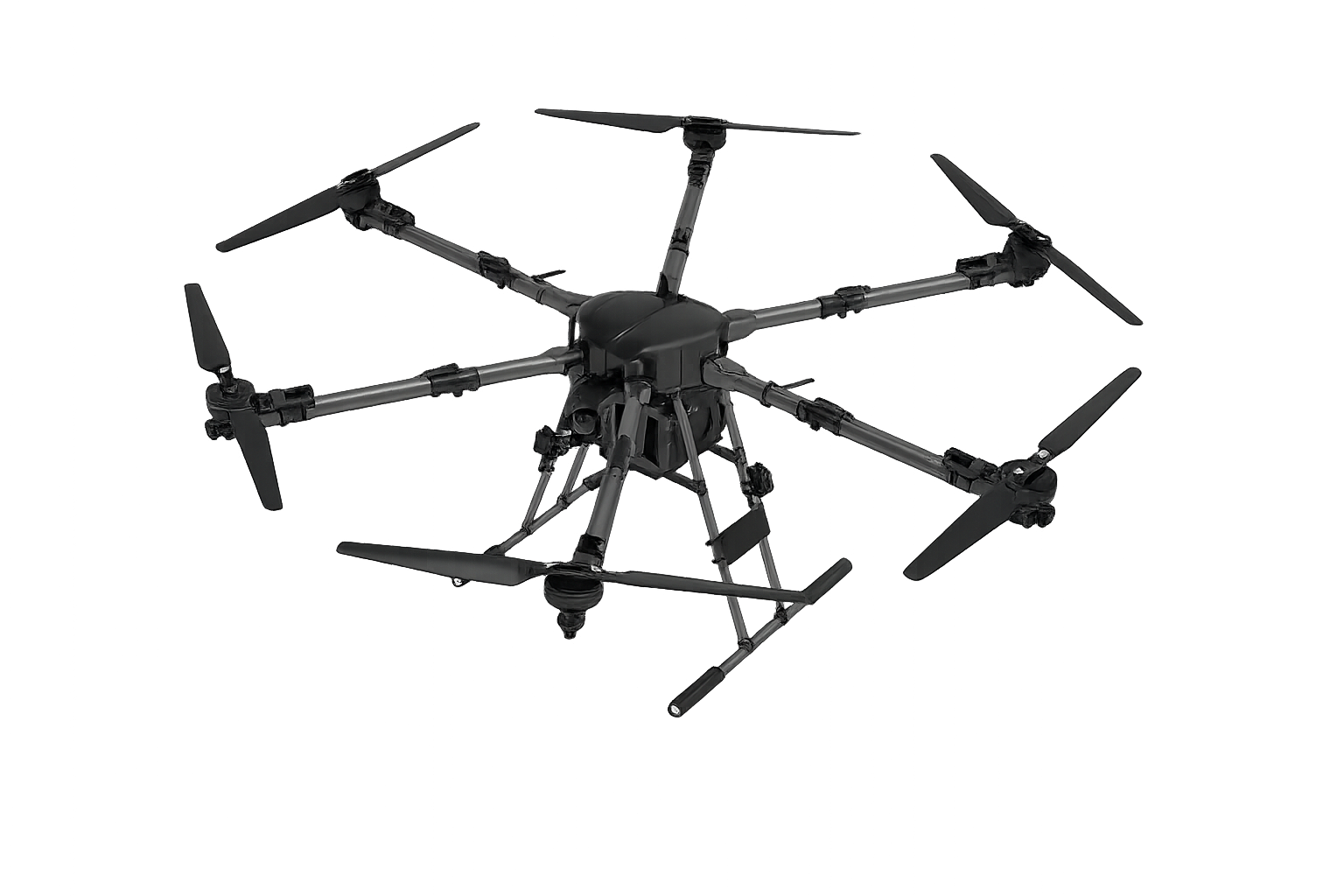

F100
F100
 30 / 31 kg 6-axis 6-prop 43-inch folding propeller 2300 mm 2150 × 1470 × 1100 mm 1390 × 1230 × 1100 mm 50 kg — 50 / 60 min 20 / 22 min with 50 kg payload 20 m/s 5000 m -20°C to 60°C
H120
H120
 35 / 36 kg 4-axis 8-prop 49-inch folding propeller 2110 mm 1660 × 1660 × 1100 mm 1165 × 1165 × 1100 mm 60 kg — 45 / 60 min 16 / 22 min with 60 kg payload — 5000 m -20°C to 60°C
F140
F140
 32 kg 6-axis 6-prop 49-inch folding propeller 2480 mm 2640 × 2310 × 1350 mm 1370 × 1195 × 1350 mm — 70 kg 45 min 17 min with 70 kg payload 20 m/s 5000 m -20°C to 60°C
H200
H200
 59 kg 6-axis 12-prop 49-inch folding propeller 2650 mm 2800 × 2415 × 1100 mm 1480 × 1310 × 1100 mm 100 kg — 48 / 55 min 15 / 20 min with 100 kg payload 20 m/s 5000 m -20°C to 60°C

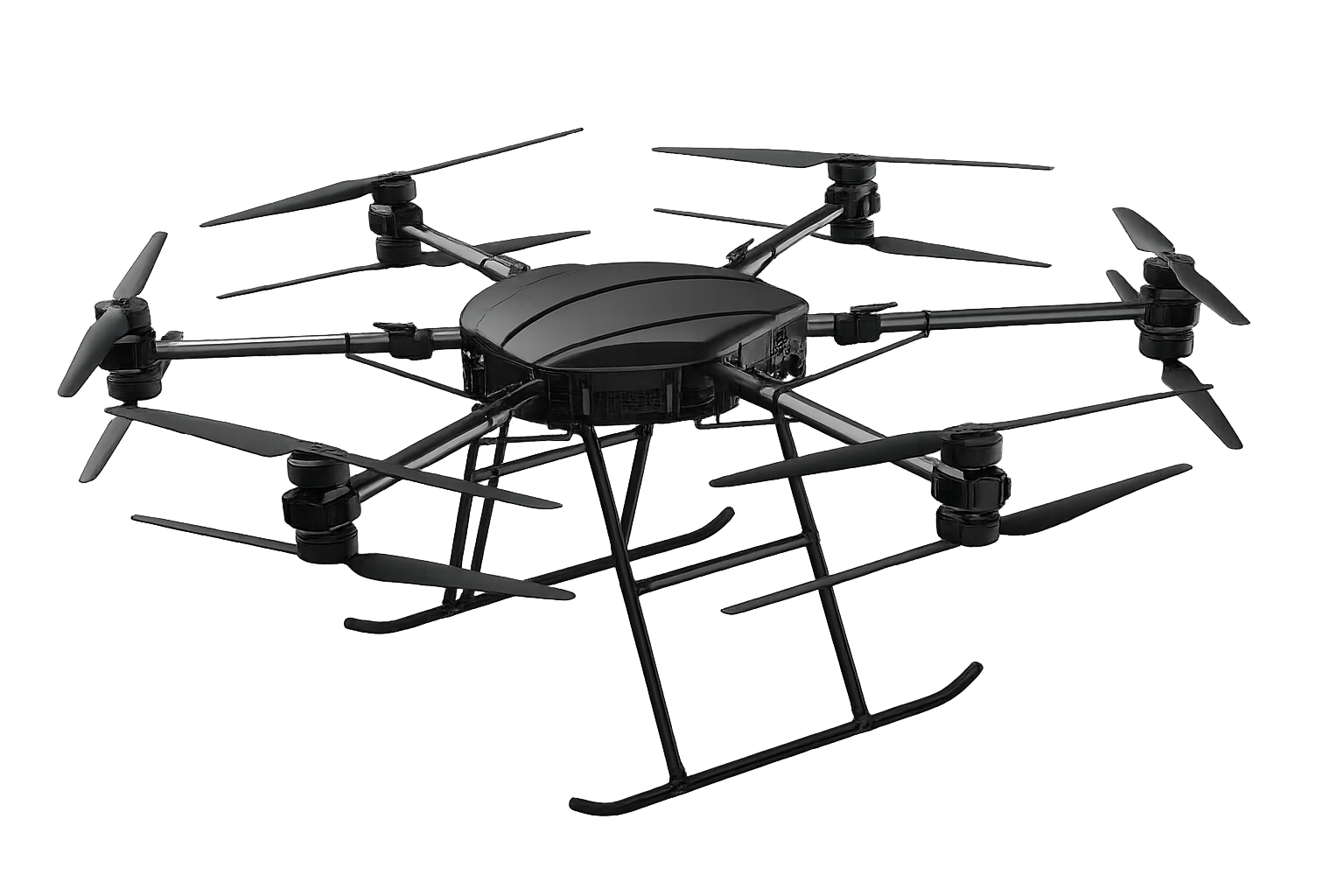

H300
H300
 87 kg 6-axis 12-prop 57-inch folding propeller 3000 mm 3155 × 3155 × 1260 mm 1430 × 1430 × 1260 mm 150 kg 200 kg 50 min 15 min with 150 kg payload 20 m/s 5000 m —
H400
H400
 107 kg 8-axis 16-prop 57-inch folding propeller 3980 mm 4135 × 3750 × 1260 mm 1980 × 1715 × 1260 mm 200 kg 300 kg 48 min 12 min with 200 kg payload 20 m/s 5000 m —

Additional Notes

Positioning Accuracy: Most heavy-lift models in this series support high-precision RTK positioning, typically up to ±0.05 m. Some lightweight models use standard positioning accuracy.

Positioning System: Most models support multiple satellite navigation systems, including GPS, BeiDou, Galileo, and GLONASS.

Wind Resistance: Most heavy-lift models in this series support Level 7 wind resistance.

Power System: Most models are equipped with an FOC high-efficiency power system for stable and reliable output.

Protection Functions: Standard safety features typically include lost-signal return, low-battery auto return and landing, and breakpoint resume flight.

Payload Compatibility

This industrial UAV platform is built for flexible integration with a wide range of payload systems. Depending on the selected model and mission profile, it can support transport boxes, release devices, inspection cameras, mapping equipment, lighting systems, communication modules, and other customized industrial payloads. Universal mounting interfaces help reduce adaptation time and improve deployment efficiency.

FAQ

  • The maximum payload depends on the selected industrial UAV model. In the Huanxin UAV heavy-lift drone series, the H400 model supports a standard payload of 200 kg and a maximum payload of up to 300 kg. The H300 model supports a standard payload of 150 kg and a maximum payload of up to 200 kg. For medium and heavy-lift missions, other models cover payload ranges from 5 kg to 100 kg, making the platform suitable for inspection, transport, emergency response, firefighting support, and specialized industrial applications.

  • The loaded flight time depends on the UAV model, payload weight, battery configuration, and operating environment. According to the current industrial UAV specifications, lighter payload models can fly up to 40–55 minutes with payload, while larger heavy-lift drone models typically fly around 12–22 minutes under heavy payload conditions. For example, the X4-10 can fly about 40 minutes with a 5 kg payload, the TF100 can fly about 22 minutes with a 50 kg payload, the H200 can fly about 15–20 minutes with a 100 kg payload, and the H400 can fly about 12 minutes with a 200 kg payload.

  • Yes. The industrial UAV platform is designed for flexible payload integration and can be adapted for different mission requirements. Depending on the selected model and application, the UAV can support transport boxes, release devices, inspection cameras, mapping equipment, lighting systems, communication modules, spraying systems, and other customized industrial payloads. Universal mounting interfaces help reduce adaptation time and make the heavy-lift drone easier to configure for transport, emergency response, firefighting support, inspection, mapping, and other specialized operations.

Customized product information is for reference only. For detailed specifications and technical parameters, please contact the Huanxin UAV team.
