Emergency Rescue drone payload
Huanxin UAV offers a comprehensive drone payload range for emergency rescue, disaster response, aerial lighting, material delivery, and public safety operations. The product lineup includes searchlights, lighting modules, dropping devices, transport boxes, descenders, fire bomb throwers, and megaphones.
Designed for industrial UAV platforms, each drone payload features modular construction, flexible integration, and dependable field performance. These solutions support aerial lighting, fixed-point delivery, rescue material transport, rope-descending operations, and remote broadcasting, helping improve mission efficiency in hazardous and inaccessible environments.
With strong adaptability across complex scenarios, Huanxin UAV drone payload solutions are ideal for fire rescue, disaster relief, mountain search and rescue, emergency logistics, and infrastructure support missions.
| Product | Input Voltage | Rated Power | Net Weight | Tilt Angle | Luminous Flux | Switch Input Signal |
|---|---|---|---|---|---|---|

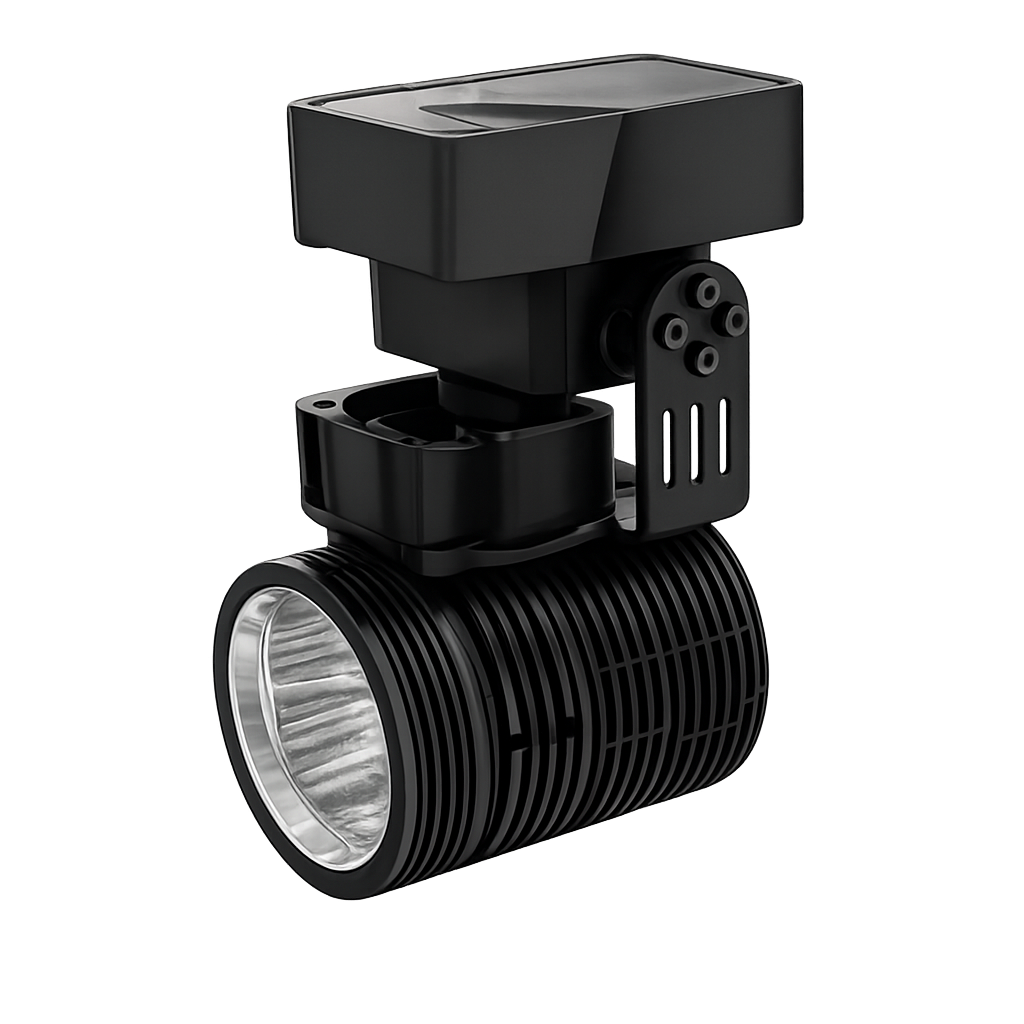

UAV Searchlight
|
22 ~ 60 V | 65 W | 604 g | 0° ~ 90° | 10000 LM | PWM |
| Product | Color Temperature | Brightness | Beam Angle | Input Voltage | Rated Power | Light Module Weight |
|---|---|---|---|---|---|---|

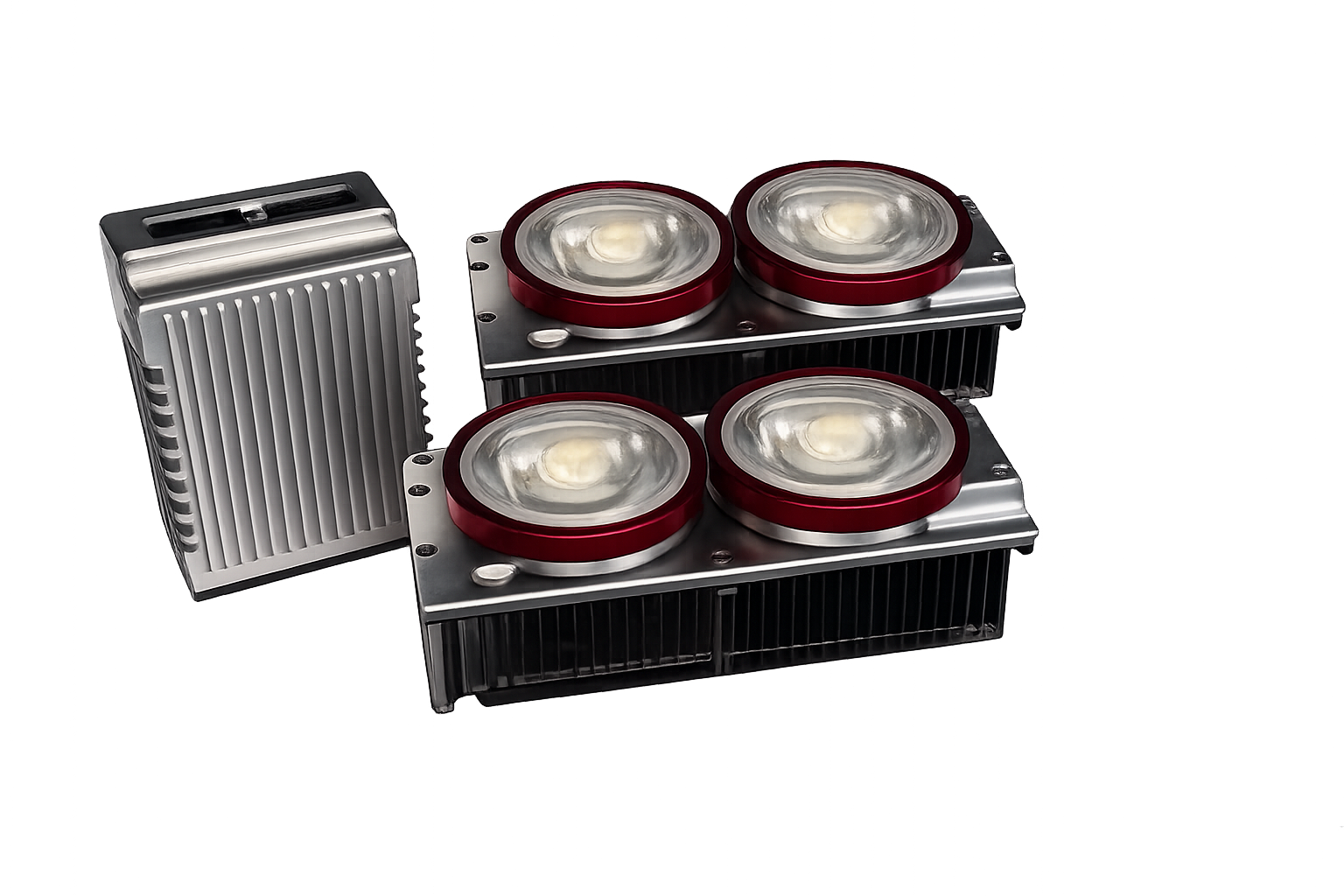

UAV Lighting Module
|
5500 K | 54000 LM | 60° | DC 24–75 V | 400 W | 180 g (excluding cable) |
| Product | Power Supply Method | Product Weight | Release Count | Supply Voltage | Control Method | Maximum Operating Current | Maximum Suspended Payload | Operating Temperature |
|---|---|---|---|---|---|---|---|---|
Light Payload Release Device
|
Powered by UAV | 450 g | 2 times | 24 V | PWM Pulse Control | 1.2 A | 10 kg | -20°C to 60°C |
| Product | Power Supply Method | Power Connector | Supply Voltage | Maximum Operating Current | Dimensions | Control Method |
|---|---|---|---|---|---|---|
UAV Material Transport Box
|
Powered by UAV | XT30 | 24 V | 1.2 A | Subject to actual dimensions | PWM Pulse Control |
| Product | Operating Voltage | Weight | Maximum Payload | Maximum Cable Length | Maximum Cable Retraction / Extension Speed | Operating Temperature | Counterweight | Functions |
|---|---|---|---|---|---|---|---|---|
Powered Rappelling Device
|
48–80 V | 3 kg | 60 kg | 30 m | 15 m/min | -25°C to 70°C | 2 kg (automatic unhook after landing) | One-touch quick release, landing-triggered unhook, top-contact protection, cargo weighing |
| Product | Dimensions | Max Payload per Hook | Standard Hook Quantity | Device Weight | Supply Voltage | Quick-Release Support | Control Method | Release Method |
|---|---|---|---|---|---|---|---|---|
Fire Bomb Release Device (DJI Compatible)
|
308.7 × 191.7 × 132.5 mm | 60 kg | 4 | 1.97 kg | 24 V | 3-second quick installation, one-touch quick release | Remote controller button control | Sequential electronic control (single drop or multiple drops, freely configurable) |
| Product | Weight | Rated Power | Power Input | Maximum Power | Operating Temperature | Tilt Angle | Effective Broadcast Range | Broadcast Mode |
|---|---|---|---|---|---|---|---|---|
UAV Loudspeaker (DJI Compatible)
|
750 ± 5 g | 45 W | 12–80 V | 30 W | -25°C to 50°C | 0°–90° | 650 m | Real-time voice broadcast, audio file playback |
| Product | Weight | Total Power | Luminous Flux | Operating Mode | Supply Voltage | Warning Light Function | Quick Release | Luminous Efficiency |
|---|---|---|---|---|---|---|---|---|
UAV Searchlight (DJI Compatible)
|
750 g | 136 W | 16000 LM | Steady On / Flashing | 12–80 V | Red and blue flashing on/off | Supports twist-lock quick release and hot swapping | 125 lm/W (128 W) |
