Drone Payload Release Solutions

Huanxin UAV offers professional drone payload release solutions for aerial delivery, industrial cleaning, inspection, environmental monitoring, and specialized UAV operations. The product range includes payload throwers, paper throwers, water intake devices, spray systems, gas detection equipment, heavy-load gimbals, and lidar scanning modules.

Each drone payload release system is designed for industrial UAV platforms, with modular construction, flexible integration, and dependable field performance. These solutions support targeted dropping, aerial transport, spraying, sensing, scanning, and other mission tasks, helping improve efficiency in complex and hard-to-reach environments.

With strong adaptability across multiple industries, Huanxin UAV drone payload release solutions are ideal for emergency response, infrastructure maintenance, environmental inspection, industrial operations, and smart city applications.

UAV High-Pressure Cleaning Kit Specification Table
Product Water Tank Capacity Spray Rod Material Extendable Length High-Pressure Pump Voltage High-Pressure Pump Weight High-Pressure Pump Pressure
UAV High-Pressure Cleaning Kit
UAV High-Pressure Cleaning Kit
 30 L Aluminum Alloy 1.5–3 m 48 V 2.5 kg Start: 0.25 MPa, Stop: 1.8 MPa
UAV Water Intake Device Specification Table
Product Dimensions Power Capacity Weight
UAV Water Intake Device
UAV Water Intake Device
 120 × 70 × 80 mm 30 W 1000 mL 684 g (water intake device only)
1.5 kg (including water collection bucket)
UAV Flame Spray Device Specification Table
Product Compatible Fuel Ignition Method Aiming Method Control Method Status Indication Control Signal Rated Power Spray Distance
UAV Flame Spray Device
UAV Flame Spray Device
 #92, #95, #98 gasoline High-frequency high-voltage arc ignition DJI remote controller + crosshair DJI PSDK remote ignition Voice prompt / RGB light strip PWM, SBUS 40 W 7 m (no wind)

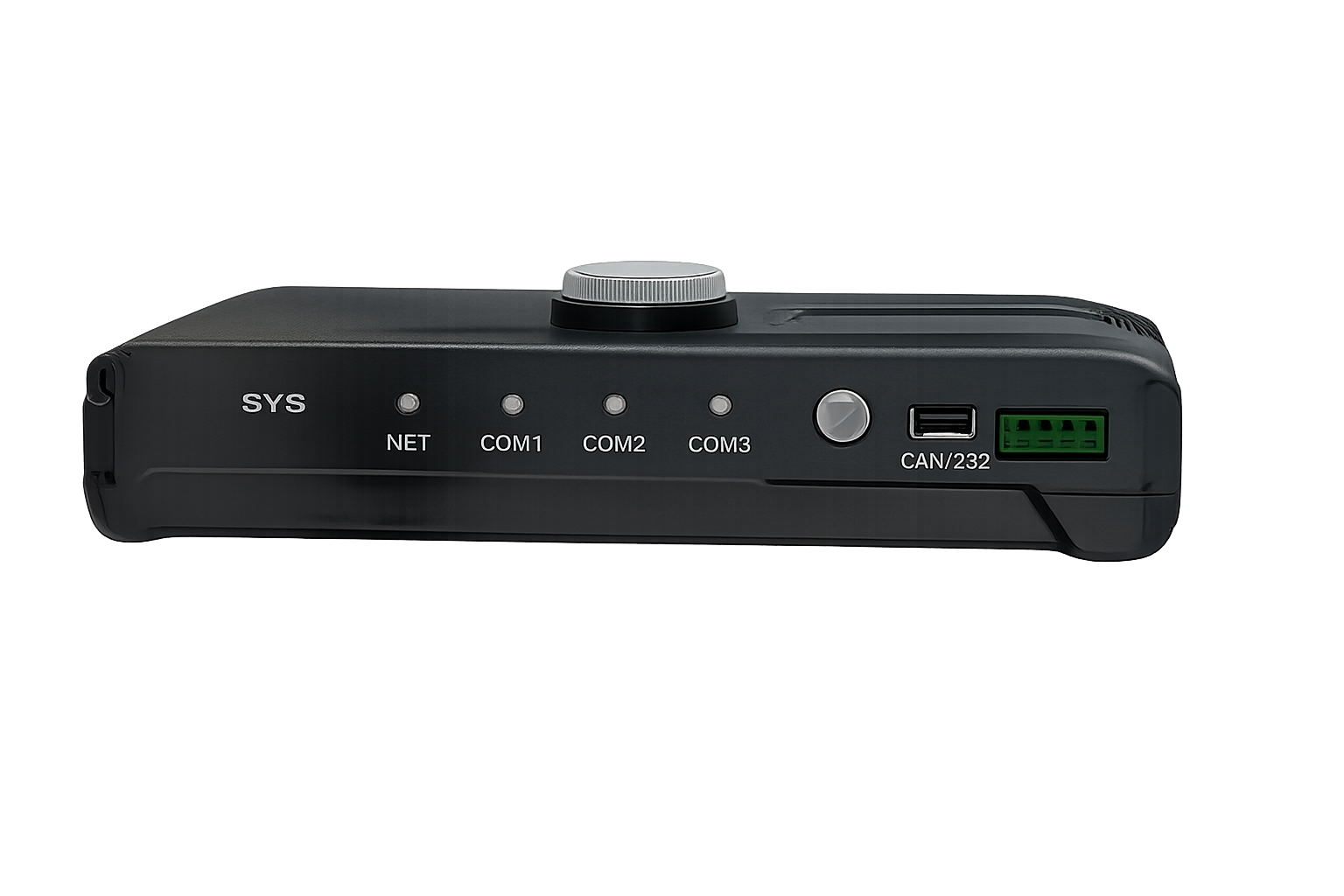

UAV Gas Detection Device Specification Table
Product Detection Principle Supply Voltage Transmission Method Operating Temperature Operating Humidity Number of Detectable Gases Detectable Gases
UAV Gas Detection Device
UAV Gas Detection Device
 Compatible with electrochemical, laser, PID photoionization, infrared, semiconductor, and other detection methods 12–24 V RS485 / Wireless Data Transmission / Wireless 4G -20°C to 50°C 15–95% RH, non-condensing 8 CO, CH4, H2, O3, H2S, NH3, C7H8, smoke mist (optional as required)
4-Position Drop Release Specification Table
Product Material Dimensions Weight Power Supply Hook Spacing Control Signal Single Hook Payload Capacity Standard Hook Quantity
4-Position Drop Release
4-Position Drop Release
 6061 Aluminum Alloy, Carbon Fiber, Stainless Steel 263 × 76 × 900 mm (adjustable length) 1.35 kg–1.5 kg Built-in lithium battery, 5 V 220 mm PWM, SBUS 30 kg 4
UAV Paper Drop Device Specification Table
Product Interface Type Control Method System Power Compatible Paper Paper Capacity Paper Output Speed Paper Output Time Operating Temperature
UAV Paper Drop Device
UAV Paper Drop Device
 SKYPORT V2.0 / E-PORT / TYPE-C Pilot 20 W Standard A5 Printing Paper Up to 400 sheets 5–7 sheets per second Adjustable from 0 to 50 s -20°C to 60°C
Water Flow Velocity Meter Specification Table
Product Dimensions Weight Operating Frequency Sensor Type Data Display Data Transmission Video Transmission Output Power
Water Flow Velocity Meter
Water Flow Velocity Meter
 200 × 175 × 155 mm 570 g 24 GHz Millimeter-Wave Radar Mobile Phone, PC Browser, Remote Controller UAV Link, Built-in 4G Module UAV Link, Remote Controller Live Streaming 13 dBm (Flow Velocity) / 20 dBm (Water Level)
UAV Spraying Kit Specification Table
Product Product Dimensions Spray Rod Length Tank Capacity Spraying Range Power Supply Pump Flow Rate
UAV Spraying Kit
UAV Spraying Kit
 2040 × 349 × 250 mm 1.5 m 30 L 15–20 m 12–14 S 14 L/min
15 kg Payload Gimbal Specification Table
Product Material Dimensions Weight Max Payload Protection Rating Operating Temperature Input Voltage Input Power Max Power Max Torque Control Accuracy Axis Mounting Method
15 kg Payload Gimbal
15 kg Payload Gimbal
 Aluminum Alloy + Carbon Fiber 227 × 175 × 94 mm 2.1 kg ± 20 g ≤ 15 kg IP4X -20°C to 45°C 15–26 V 12 V / 2.5 A (Max) 300 W 3 N·m ±0.08° Pitch Axis, Roll Axis Quick-Release Module (3s Quick Mount / One-Click Release)
50 kg Payload Gimbal Specification Table
Product Dimensions Weight Payload Capacity Protection Rating Operating Temperature Input Voltage Input Power Max Power Max Torque Control Accuracy Communication Cable Axis Mounting Method Roll Axis Range Pitch Axis Range
50 kg Payload Gimbal
50 kg Payload Gimbal
 350.7 × 278 × 120 mm 4 kg 50 kg IP4X -20°C to 45°C 15–24 V 12 V / 2.5 A (Max) 380 W 50 N·m ±0.08° 20-core Cable Roll Axis, Pitch Axis 3 s Quick Installation / One-Click Quick Release ±169° ±45°
UAV LiDAR Scanning System Specification Table
Product Absolute Accuracy Point Density Weight Dimensions System Power Consumption Operating Temperature Power Supply Measurement Range Point Rate Field of View Ranging Accuracy Camera Resolution Data Update Rate
UAV LiDAR Scanning System
UAV LiDAR Scanning System
 10 cm @ 150 m 50 pts/m² @ 150 m @ 10 m/s 1.1 kg 14.4 × 10.9 × 12 cm 20 W -20°C to 55°C 12–24 V Up to 300 m 192,000 pts/s (Triple Echo) 360° / 40.3° 0.5 cm 26 MP 200 Hz
UAV High-Altitude Cleaning System Specification Table
Product Spray Arm Material Hose Material Nozzle Angles Spray Angle Adjustment Hose Connection Type Hose Length Rated Working Pressure Burst Pressure Mounting Plate
UAV High-Altitude Cleaning System
UAV High-Altitude Cleaning System
 Carbon Fiber High-Pressure Explosion-Proof Hose 0°, 15°, 25° Quick-Change Nozzles Adjustable Horizontal Swing 4-Point Quick Connector 100 m (Customizable) 8–10 MPa 22 MPa Compatible with FC30 to T100 Series UAVs
Customized product information is for reference only. For detailed specifications and technical parameters, please contact the Huanxin UAV team.
